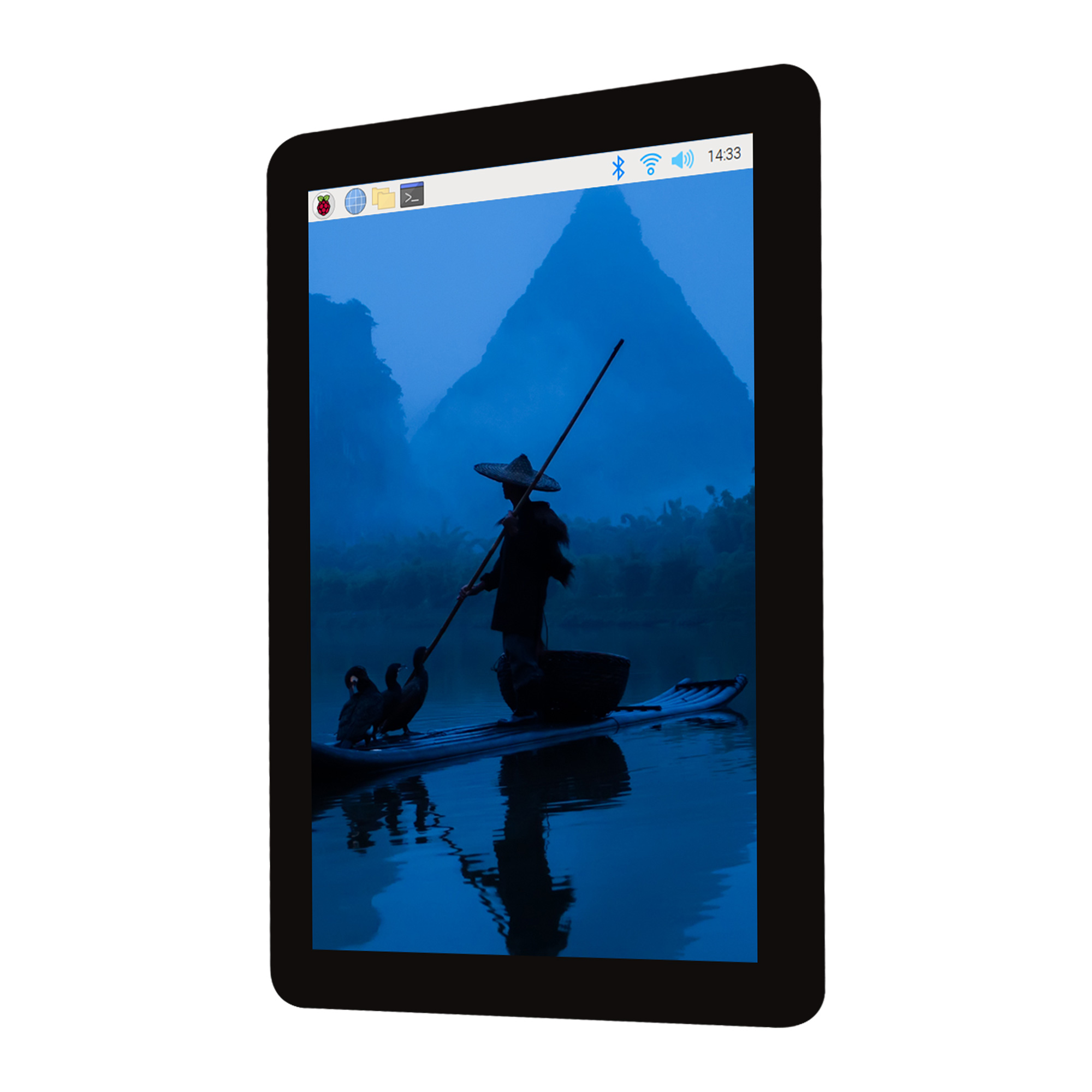

Raspberry Pi Touch Display 2

Key Features
  • 720 (RGB) × 1280 pixels display format
  • 88mm × 155mm active area
  • TFT, normally white, transmissive LCD type
  • True multi-touch capacitive touch panel, supporting five-finger touch
  • Anti-glare surface
  • Dimensions: 120mm(W) x 190mm(L) x 6.6mm(H)
  • Weight: 244g

Raspberry Pi Touch Display 2 is the long-awaited successor to our popular 7” Touch Display.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.

It is a portrait-native display offering:

  • 720 (RGB) × 1280 pixels display format
  • 88mm × 155mm active area
  • TFT, normally white, transmissive LCD type
  • True multi-touch capacitive touch panel, supporting five-finger touch
  • Anti-glare surface
  • Dimensions: 120mm(W) x 190mm(L) x 6.6mm(H)
  • Weight: 244g

The original 7" Touch Display will remain in mass production and remains a mandatory-stocked item.

Specification

与树莓派计算模块5兼容

符合英特尔® SDM规范


支持计算模块5上的U.FL天线(如树莓派天线套件中所附带的天线)


启动模式开关


外部电源按钮


LED指示灯


树莓派天线套件安装位


连接接口包括:


HDMI® 2.0

USB 3.0 Type-A

USB 2.0 Type-C(仅用于为计算模块5编程)

千兆以太网RJ45

M.2 M-key PCIe插槽(兼容2230、2242、2260和2280规格)

22路MIPI DSI/CSI-2连接器

RTC电池座(CR2032)

树莓派计算模块5插槽

英特尔SDM边缘连接器,提供:


HDMI 2.0

USB 3.0

2× I2C

通用SPI

UART


Mechanicals

Docs
Type Title Publish Time
product brief Raspberry Pi Touch Display 2 product brief.pdf 2024-04-10
install guide Raspberry Pi Touch Display 2 install guide 2024-04-10
